Biasing Transistors With Current Sources

Transistor biasing is one of those topics that can sound like a punishment invented by an especially strict electronics professor. In reality, it is just the art of placing a transistor at the right operating point so it behaves the way you want. If the transistor is supposed to amplify, its bias point must keep it in the linear region. If it drifts, clips, or sulks into cutoff, your elegant amplifier turns into a tiny chaos machine.

That is where current-source biasing enters like the reliable friend who actually shows up on moving day. Instead of depending only on resistors and hoping device gain, temperature, and supply voltage all behave nicely, designers use current sources to force a more predictable operating current. The result is better stability, better repeatability, and usually a much happier circuit. From discrete amplifiers on a lab bench to integrated analog chips packed tighter than a rush-hour subway car, current-source biasing is one of the most important ideas in analog design.

In this guide, we will break down what biasing transistors with current sources really means, why it works so well, where it shows up in real circuits, and what practical issues can trip up even a smart design. We will look at BJTs, MOSFETs, current mirrors, differential pairs, active loads, compliance limits, and a few real-world lessons that only appear after you have burned through a handful of transistors and a fair amount of patience.

What Biasing Means in a Transistor Circuit

Biasing sets the direct current conditions of a transistor when no signal is present. In a BJT amplifier, that means choosing a collector current and collector-emitter voltage that place the transistor in forward-active operation. In a MOSFET amplifier, it means choosing a drain current and drain-source voltage that keep the device in saturation for analog gain. The exact words differ, but the mission is the same: create a steady operating point so the incoming signal can swing around it without smashing into the rails.

Traditional resistor bias networks can work well in simple circuits, but they carry baggage. A BJT base-bias resistor, for example, makes operating current depend heavily on transistor beta. That is awkward because beta varies from part to part, shifts with temperature, and rarely reads the datasheet before doing whatever it wants. MOSFET biasing with a fixed gate voltage can also wander because threshold voltage varies between devices and changes with temperature. The circuit may work on Tuesday and become “creative” on Wednesday.

A current source improves the situation by making the transistor current more deliberate. If the bias current is defined by a current source rather than by a fragile balance of resistor values and semiconductor mood swings, the operating point becomes much more predictable. That is why current-source biasing shows up everywhere serious analog performance matters.

Why Current Sources Beat Plain Resistors

More Stable Operating Current

A resistor creates current only indirectly, through whatever voltage happens to appear across it. A current source, on the other hand, is designed to maintain roughly constant current over a range of output voltages. That means the transistor’s bias current changes less when supply voltage shifts, transistor gain varies, or neighboring stages start demanding attention.

Higher Effective Resistance

An ideal current source has infinite small-signal resistance. Real ones do not, but a good current source can still have a much larger incremental resistance than a plain resistor. In amplifier stages, that matters because a large load resistance often means higher voltage gain. This is why active loads built from transistors are so popular in analog ICs: they take up less area than giant resistors and give better gain.

Better Matching Between Stages

In multistage amplifiers and differential pairs, bias currents often need to be copied from one place to another. Current mirrors make that possible. Once you establish a reference current, you can replicate it into several branches, scale it, or use it to set tail current, collector load current, or source degeneration bias. It is like one disciplined current giving the rest of the circuit a pep talk.

How a Transistor Can Act as a Current Source

BJT Current Source Basics

A BJT can be used as a current source when its base-emitter voltage is controlled and its emitter includes a resistor that defines current. A very common approximation is:

IE ≈ (VB - VBE)/RE

If the base voltage is held fairly constant, then emitter current stays fairly constant too. Since collector current is approximately equal to emitter current for large beta, the transistor behaves like a current sink or source depending on orientation. It is not ideal, because collector current still changes somewhat with collector voltage due to the Early effect, but it is often dramatically better than a simple resistor feed.

MOSFET and JFET Current Source Basics

MOSFETs and JFETs are also natural candidates for current-source biasing. In analog operation, a MOSFET biased in saturation can behave like a voltage-controlled current source. If the gate-source voltage is held at the right value, the drain current becomes predictable enough for biasing purposes. JFETs biased in pinch-off can do something similar, which is why they appear in older analog current sources and sensor interfaces.

That said, MOSFETs bring their own personality traits. Threshold voltage variation can make discrete MOSFET biasing less repeatable than beginners expect. Two MOSFETs from the same bag may not agree on what “just right” means. Designers often tame this with source degeneration, op-amp control, trimming, or matched devices on the same chip.

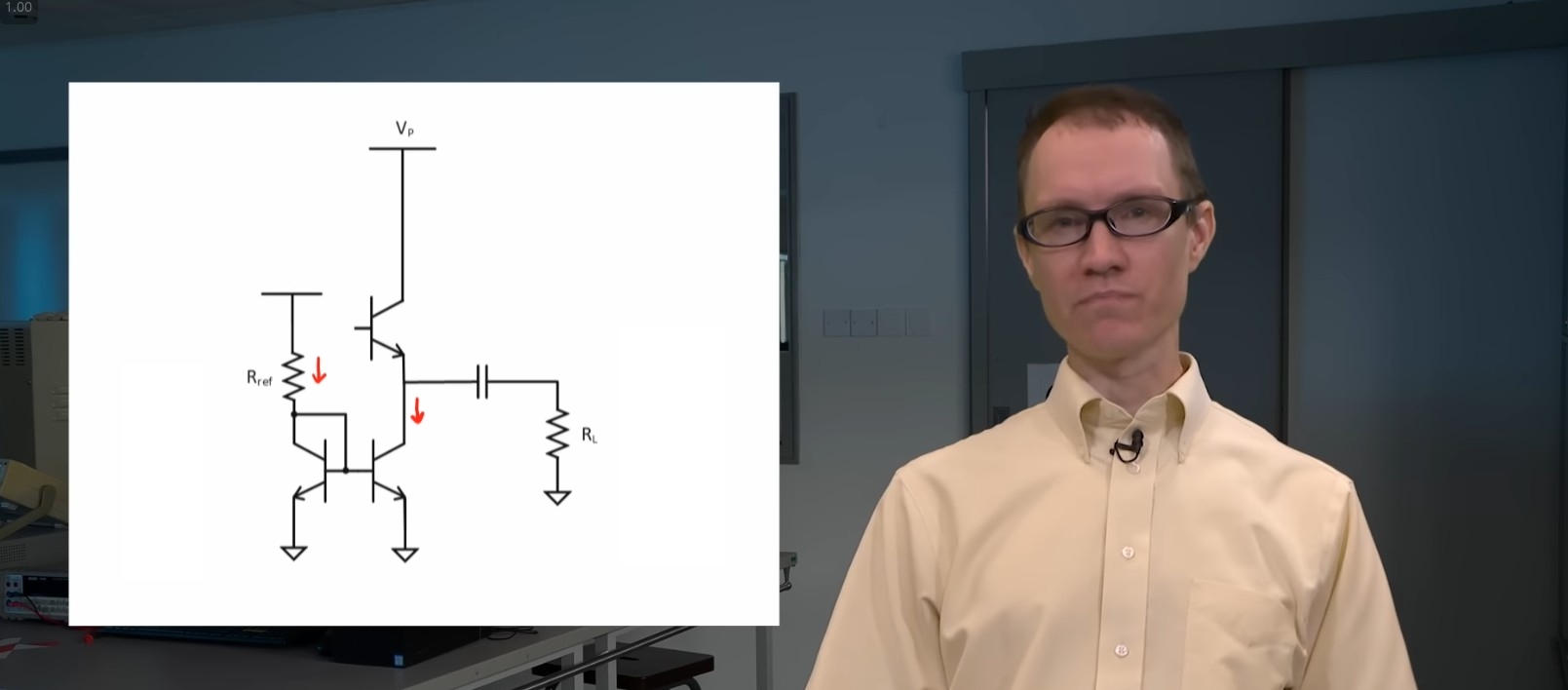

Current Mirrors: The Workhorse of Current-Source Biasing

If transistor biasing had a mascot, it would probably be the current mirror. A current mirror takes a reference current in one branch and copies it into another. In the simplest BJT mirror, one transistor is diode-connected, meaning its collector and base are tied together. That reference branch develops the base-emitter voltage needed for a certain current. A second matched transistor sees the same base-emitter voltage and ideally conducts a similar collector current.

Simple mirrors are elegant, cheap, and everywhere. They set the tail current in differential pairs, bias gain stages, generate active loads, and distribute reference currents across an analog IC. Change the emitter area ratio in BJTs or the width-to-length ratio in MOSFETs, and the mirror can scale current instead of merely copying it. In other words, one current walks into the room and comes back wearing a different-sized jacket.

Of course, simple mirrors are not magic. Real mirrors suffer from finite output resistance, mismatch, temperature drift, and headroom limits. If the output transistor does not have enough voltage across it, it leaves the region where the mirror behaves properly. That minimum required voltage is called compliance voltage, and ignoring it is one of the fastest ways to make a current source stop being a current source.

Biasing Common-Emitter and Common-Source Amplifiers

Consider a common-emitter BJT amplifier. A resistor load at the collector works, but replacing or supporting part of the bias network with a current source can make the collector current more stable and the small-signal gain more predictable. In integrated circuits, a current-source load often replaces a resistor entirely because it provides a much larger small-signal resistance without requiring absurd chip area.

In a common-source MOSFET amplifier, a current-source load is even more common. The transistor being amplified pulls against an active load transistor that supplies nearly constant current. This arrangement can produce high gain because both devices contribute large incremental resistance. That is why analog IC designers adore active loads in operational amplifiers, differential stages, and cascaded gain blocks.

One important detail is headroom. If the signal swing drives either transistor out of its intended region, gain drops and distortion rises. A beautiful current-source load is still constrained by supply voltage. Analog design is often a graceful argument between ideal theory and the number of volts you actually have.

Differential Pairs and Tail Current Sources

One of the clearest examples of current-source biasing is the differential pair. Two transistors share a common emitter or source connection, and a current source at that common node sets the total tail current. When both inputs are equal, the current splits roughly equally between the two devices. When one input rises relative to the other, more of the tail current is steered into one transistor and less into the other.

This is a huge upgrade over using a plain resistor as the tail element. A resistor tail allows common-mode voltage changes to modulate the total current more easily, which hurts gain and common-mode rejection. A current source keeps the total current more constant, which improves the differential behavior of the pair. That is why differential amplifiers in op-amps, comparators, and instrumentation circuits almost always rely on current-source tail biasing.

Here is a simple design example. Suppose a BJT differential pair needs a total tail current of 2 mA. A reference branch generates 1 mA through a diode-connected transistor, and a 2:1 current mirror scales that to 2 mA for the tail source. With equal inputs, each side conducts about 1 mA. If each collector resistor is 4.7 kΩ from a 12 V supply, then each collector drops about 4.7 V at quiescent current, leaving useful headroom for signal swing. That is not a complete final design, but it shows how bias current becomes a deliberate design choice instead of a lucky accident.

Active Loads and High Gain Stages

When a transistor is used as a current source load, engineers often call it an active load. The name sounds slightly smug, but the concept is simple. Instead of using a resistor at the collector or drain, you use a transistor biased to deliver nearly constant current. Since its small-signal resistance can be very high, the voltage gain of the stage increases.

This matters enormously in integrated amplifiers. Large-value resistors consume silicon area and may be poorly controlled. Active loads let designers achieve high gain using transistors that are already native to the fabrication process. That is one reason multistage analog ICs can deliver impressive open-loop gain while looking deceptively compact on paper.

Cascode current sources go a step further by increasing output resistance and reducing the influence of collector or drain voltage variation. If a simple current source is good, a cascode version is its more disciplined cousin with a better resume. The tradeoff is reduced voltage headroom, so the designer must choose between higher output resistance and wider signal swing.

Design Challenges You Should Not Ignore

Compliance Voltage

Every practical current source needs a certain minimum voltage across it to operate correctly. If the voltage drops below that level, current regulation collapses. This is especially important in low-voltage analog designs, where every fraction of a volt feels like rent money.

Device Mismatch

Current mirrors work best when transistors match well. In monolithic ICs, matching can be excellent because devices share the same process and temperature. In discrete circuits, matching is often worse. Two transistors that look identical may differ enough to move the bias point by an annoying amount.

Temperature Drift

Bias current can drift because VBE, threshold voltage, leakage, and beta all change with temperature. Emitter or source degeneration helps. So do bandgap references, servo loops, and careful device choice. Temperature is the silent editor of analog circuits: it keeps revising your work whether invited or not.

Finite Output Resistance

No real current source is ideal. BJT sources suffer from the Early effect. MOS sources suffer from channel-length modulation. In both cases, output current changes somewhat with output voltage. Cascoding improves this, but costs voltage headroom and complexity.

Noise and Stability

Bias networks can inject noise into sensitive amplifier nodes. In op-amp-assisted current sources, compensation may be necessary when driving transistor gates or highly capacitive loads. A design that is accurate but oscillates is not actually a success story.

A Practical Discrete Example

Imagine you need to bias a small-signal BJT amplifier at about 1 mA from a 9 V supply. You could use a simple voltage-divider bias and emitter resistor, and that often works just fine. But suppose you want the collector current to remain more consistent across transistor substitutions. A small current sink in the emitter leg can help.

One approach is to generate a reference voltage with two silicon diodes or a transistor string, giving roughly 1.4 V. Feed that into the base of an NPN transistor with a 680 Ω emitter resistor. Subtract about 0.7 V for VBE, and the emitter resistor sees around 0.7 V. That gives roughly 1 mA of emitter current. Put this transistor where it can sink the amplifier’s emitter current, and the stage becomes much less dependent on the main transistor’s beta.

Is it perfect? Not even close. The diode drops vary, VBE shifts with temperature, and discrete devices mismatch. But compared with a crude base resistor alone, it is a meaningful improvement. This is often the analog designer’s reality: not perfection, just better behavior with fewer surprises.

Practical Experiences and Lessons From the Bench

The most useful lessons about biasing transistors with current sources rarely arrive in the first five minutes. They usually appear after the simulation looked great, the breadboard looked innocent, and the scope trace looked like it had opinions. One common beginner experience is discovering that a current mirror which behaved beautifully in SPICE becomes noticeably uneven in real hardware. The reason is often mundane rather than mysterious: the transistors are not well matched, one device warms up faster than the other, the collector voltages are very different, or the layout adds just enough resistance to tilt the result.

Another classic experience is learning that compliance voltage is not a footnote. A designer may calculate a lovely 2 mA current source, wire it into a transistor stage, and then wonder why the measured current falls apart when the output voltage swings too close to the rail. The current source was not lying. It simply ran out of room to do its job. This is especially common in low-voltage circuits, where the difference between “works perfectly” and “why is this clipping?” can be less than a volt.

Thermal behavior is another teacher with a dry sense of humor. A discrete BJT current source that seems stable at room temperature can drift more than expected after a few minutes because the sensing transistor and the output transistor do not share temperature equally. In an integrated circuit, close device placement helps matching a lot. On a breadboard, one transistor may sit near a warm regulator while the other enjoys a cool breeze. Electrically they are twins; thermally they are living different lives.

There is also the lesson of emitter and source degeneration. Many designers first meet current mirrors in their simplest form and assume simplicity means superiority. Then they add a small emitter resistor, see improved stability, and realize analog design is full of small compromises that pay big dividends. You lose a little voltage headroom, but often gain sanity, predictability, and a more forgiving circuit. That is a strong trade in most labs.

People also learn quickly that measurement technique matters. Probing a high-impedance node in a bias network with the wrong instrument setup can alter the very voltage you are trying to observe. A long ground lead on an oscilloscope can add noise and confusion that gets blamed on the current source. Suddenly the transistor is innocent and the probe is the real drama queen.

One especially useful habit is designing bias circuits so you can test them independently from the signal path. Build the current reference first. Measure it with a resistor load. Sweep the supply voltage if you can. Check how much the current changes as the output voltage changes. Once the source behaves, then connect it to the amplifier stage. This modular approach saves hours because it separates bias problems from gain problems, and those two love pretending to be each other.

In practice, the best designers tend to treat current-source biasing not as a fancy add-on, but as infrastructure. It is the plumbing behind the walls. Nobody throws a party for the plumbing, but if it is bad, everyone notices. A well-designed current source makes the rest of the transistor circuit more predictable, more linear, and easier to scale. A weak one creates subtle distortions, strange operating points, and long evenings with a calculator.

The final real-world lesson is refreshingly simple: bias with intention. Do not let the operating current happen by accident. Decide what current the stage should run, how much voltage headroom is available, how much variation is acceptable, and what temperature range the circuit must survive. Once you think that way, current-source biasing stops feeling like a trick and starts feeling like the backbone of analog design. Which, frankly, it is.

Conclusion

Biasing transistors with current sources is one of the most important habits in analog design because it replaces wishful thinking with controlled operating current. Whether you are working with a BJT common-emitter stage, a MOSFET amplifier, a differential pair, or a multistage analog IC, current-source biasing improves stability, repeatability, and gain potential. It also makes complex circuits easier to understand, because once you identify the bias currents, the rest of the signal path becomes much less mysterious.

The key ideas are straightforward: set the operating point with a defined current, copy that current with mirrors when needed, respect compliance voltage, and remember that real devices drift, mismatch, and warm up. Add degeneration where it helps, use cascoding when you can afford the headroom, and never forget that the prettiest current source in theory is still negotiating with supply rails in real life.

In short, if resistor-only biasing is the analog equivalent of crossing your fingers, biasing transistors with current sources is the part where you finally bring a map.
