Simple Ways to Cut Angles on a Table Saw

Note: This article is written for practical woodworking education and synthesizes real guidance from reputable woodworking, tool-manufacturer, and safety resources. Always follow your table saw owner’s manual and use proper personal protective equipment before making any cut.

Introduction: Angles Look Fancy, But They Do Not Have to Be Scary

Cutting angles on a table saw can feel like trying to solve geometry while a spinning blade hums impatiently in front of you. The good news? Once you understand the difference between a miter cut, a bevel cut, a compound angle, and a taper, the whole thing becomes much less mysterious. In fact, many angled cuts are simply normal table saw cuts with one setting changed: either the miter gauge moves, the blade tilts, or a jig guides the board at a controlled angle.

The table saw is one of the most versatile tools in a woodworking shop. It can rip boards, crosscut parts, cut rabbets, trim panels, bevel edges, make miters, andwhen used with the right jigrepeat angles with impressive accuracy. But because the table saw is powerful, it also asks for respect. Not fear. Respect. Fear makes your hands shaky. Respect makes you unplug the saw before adjusting the blade.

This guide explains simple ways to cut angles on a table saw, including easy setups for miter cuts, bevel cuts, angled rip cuts, 45-degree picture-frame miters, steep angles, and repeatable project parts. Whether you are building a small box, trimming a tabletop, making a hexagon shelf, or trying to cut a bevel that does not look like it was chewed by a raccoon, the same principles apply: measure carefully, support the workpiece, make test cuts, and keep your hands away from the blade path.

Understanding the Main Types of Angle Cuts

What Is a Miter Cut?

A miter cut changes the angle across the face of the board while the table saw blade remains vertical. Imagine looking down at a board from above. Instead of cutting straight across at 90 degrees, you cut across at 45 degrees, 30 degrees, 22.5 degrees, or another angle. This is the classic cut used for picture frames, door trim, boxes, octagons, and decorative frames.

On a table saw, miter cuts are usually made with a miter gauge, a miter sled, or a crosscut sled with an angled fence. The board rides through the blade while held firmly against the angled guide. The key is that the workpiece moves in a straight line through the blade, but it is positioned at an angle.

What Is a Bevel Cut?

A bevel cut is made by tilting the blade. The board still travels straight through the saw, but the edge of the cut is sloped. Bevels are common for box lids, cabinet parts, chamfered edges, trays, panels, and furniture details. Most table saws tilt to 45 degrees, though some models can tilt slightly beyond that.

One common point of confusion is how saw angle scales are labeled. On many table saws, the bevel scale measures how far the blade tilts away from vertical. So if the blade is set to 40 degrees, the remaining angle relative to the table surface may appear as 50 degrees. This is not your saw trying to gaslight you. It is just angle terminology being angle terminology.

What Is a Compound Angle?

A compound angle combines a miter and a bevel in the same cut. The board is angled across the blade, and the blade is tilted at the same time. Compound cuts are useful for splayed legs, pyramid-shaped boxes, crown molding setups, and certain furniture parts. They require more testing because two settings affect the final fit.

What Is a Taper or Angled Rip Cut?

A taper cut changes the width of a board along its length. Think table legs that are wider at the top and narrower at the bottom. On a table saw, tapers should be made with a taper jig or sled. Do not freehand taper cuts against the blade. Freehand cutting on a table saw is like juggling eggs next to a ceiling fan: technically possible for a second, then suddenly regrettable.

Safety First: The Best Angle Cut Is the One You Walk Away From Smiling

Before making angled cuts, set up the saw properly. Use the blade guard, riving knife, and anti-kickback pawls whenever the cut allows. Use push sticks, push blocks, featherboards, hold-downs, clamps, and outfeed support as needed. Keep your hands out of the blade path, and never reach over or behind a spinning blade.

For narrow pieces, use a push stick. For small angled parts, use a sled or clamp the workpiece to a carrier board. For long boards, add outfeed support so the piece does not dip, twist, or pull away during the cut. A table saw rewards calm, controlled movement. It does not reward heroic last-second grabbing.

One major rule: do not trap a workpiece between the rip fence and the miter gauge during a crosscut. If you need a stop block for repeatable length, clamp a small block to the fence before the blade, so the board touches the stop block only before the cut begins. Once the board reaches the blade, it should no longer be trapped between the fence and the miter gauge.

Tools and Accessories That Make Angle Cuts Easier

Miter Gauge

The miter gauge is the simplest accessory for cutting angles across a board. It slides in the miter slot and can be adjusted to common angles. Many stock miter gauges are usable, but some have play in the slot or small faces that do not support the workpiece well. Adding an auxiliary wooden fence to the miter gauge improves support and reduces tear-out.

Crosscut Sled

A crosscut sled gives better control than a basic miter gauge. It supports the workpiece on both sides of the blade and helps keep cuts square, smooth, and repeatable. For angle cuts, you can add angled fences, stop blocks, or removable wedges. A well-built sled is like a loyal shop dog: it stays flat, behaves predictably, and makes your day better.

Miter Sled

A dedicated miter sled is excellent for picture frames, boxes, and repeated 45-degree cuts. Many woodworkers build a sled with two fences set at a perfect 90-degree relationship to each other, with each fence positioned at 45 degrees to the blade. This lets you cut matching left and right miters without resetting the saw.

Taper Jig

A taper jig is the proper tool for angled rip cuts. It holds the board at a fixed angle while the board travels along the fence. Commercial taper jigs are available, but shop-made versions work well if they are sturdy and include secure clamps or stops.

Digital Angle Gauge or Bevel Gauge

A digital angle gauge can help set the blade tilt accurately. A sliding bevel gauge can transfer an angle from a drawing, sample piece, or full-size layout directly to the saw blade. These tools reduce guesswork and help when your saw’s built-in angle scale is close, but not close enough for tight joinery.

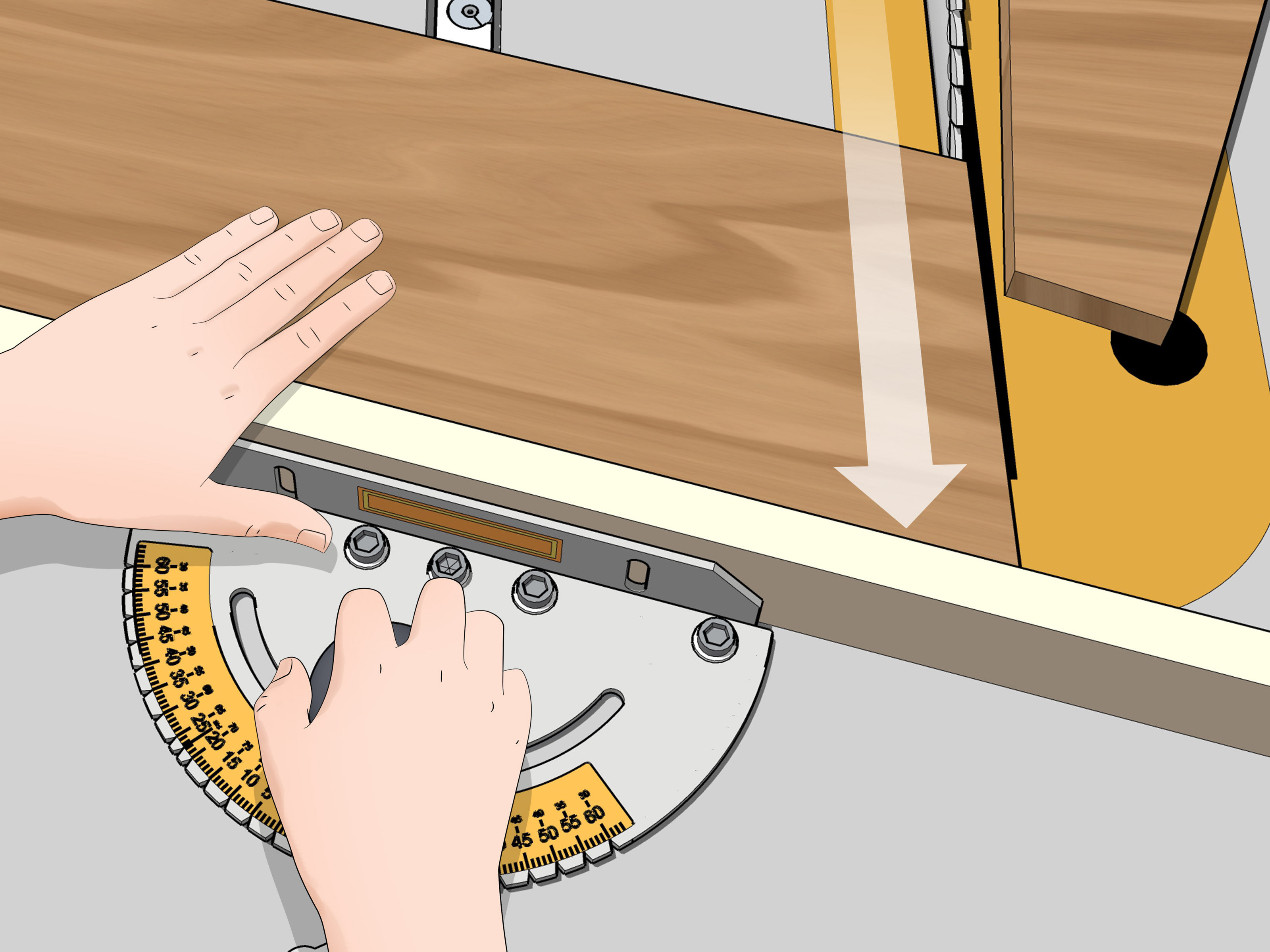

Simple Method 1: Cut a Basic Miter with the Miter Gauge

The easiest way to cut an angle across a board is to use the miter gauge. This works well for short and medium-length parts, trim pieces, small frames, and project components.

Step-by-Step Process

1. Unplug the saw or make sure it is switched off before making adjustments.
2. Set the blade to 90 degrees, straight up and down.
3. Set the miter gauge to the desired angle, such as 45 degrees.
4. Place the board firmly against the miter gauge fence.
5. Keep the board flat on the table and away from the rip fence.
6. Start the saw and let the blade reach full speed.
7. Push the miter gauge smoothly through the cut.
8. Let the offcut clear the blade before reaching for anything.

For best results, make a test cut on scrap wood first. Then check the angle with a reliable square, protractor, or by fitting two matching pieces together. If two 45-degree cuts form a clean 90-degree corner, you are in good shape. If there is a gap, adjust the miter gauge slightly and try again.

Simple Method 2: Cut a Bevel by Tilting the Blade

For a bevel cut, the workpiece usually rides along the rip fence while the blade is tilted. This is useful when you want a sloped edge along the length of a board. Examples include beveled cabinet panels, chamfered tabletop edges, box sides, trays, and decorative trim.

Step-by-Step Process

1. Unplug the saw before adjusting the blade angle.
2. Tilt the blade to the required bevel angle.
3. Use a digital angle gauge or bevel gauge to verify the setting.
4. Raise the blade just high enough to clear the workpiece safely.
5. Set the rip fence for the desired final width.
6. Position the board so the keeper piece is safely controlled.
7. Use push sticks, push blocks, and featherboards as needed.
8. Feed the board smoothly without twisting it.

When making bevel cuts, think about which side of the blade the fence should be on. The blade tilt can create a situation where the offcut becomes trapped or the keeper piece is awkward to control. If the setup feels cramped, stop and rethink it. The safest setup is usually the one that gives the workpiece full support and keeps the offcut from pinching the blade.

Simple Method 3: Use a Crosscut Sled for Cleaner Angled Cuts

A crosscut sled improves accuracy because it carries the workpiece through the blade with more support than a standard miter gauge. For angled cuts, you can clamp a wedge, attach an angled fence, or use layout lines to position the workpiece precisely.

This method is especially useful for small parts. Small pieces can shift during a cut, and fingers should never become “precision hold-down devices.” Instead, clamp the workpiece to the sled or use a stop block. If the part is too small to hold comfortably, it is too small to cut loose on a table saw.

Best Uses for a Sled

• Small box parts
• Picture-frame miters
• Repeated 22.5-degree cuts for octagons
• Accurate 45-degree corners
• Thin strips and delicate workpieces

A sled also reduces tear-out because the bottom of the board is supported near the blade. Add a sacrificial fence or zero-clearance insert for even cleaner cuts.

Simple Method 4: Build or Use a Dedicated 45-Degree Miter Sled

If you make frames, boxes, trays, or decorative panels, a 45-degree miter sled is worth the shop space. Unlike a miter gauge that must be adjusted and checked, a dedicated sled keeps the angle ready. You simply place one piece against the left fence, another against the right fence, and cut matching miters.

The secret is not only setting each fence at 45 degrees. The two fences must create a perfect 90-degree relationship. If both halves of a corner are off by the same tiny amount but still add up to 90 degrees, the joint can close beautifully. That is why miter sleds are so popular for picture frames.

Practical Tip

Cut two test pieces and bring the freshly cut edges together. If the outside corner opens, adjust the sled fence slightly. If the inside corner opens, adjust in the opposite direction. Make small changes. A tiny adjustment can turn a “close enough” miter into a “wait, did you buy this?” miter.

Simple Method 5: Cut Tapers with a Taper Jig

Taper cuts are long angled cuts, often used for table legs, chair parts, and decorative strips. The safest simple method is to use a taper jig that rides along the rip fence. The jig holds the board at the correct angle while keeping your hands farther from the blade.

How to Use a Taper Jig

1. Mark the taper on the workpiece.
2. Place the board in the taper jig and align the cut line with the blade path.
3. Clamp the board securely to the jig.
4. Set the fence so the jig moves smoothly past the blade.
5. Use push handles or push blocks to guide the jig.
6. Make the cut in one steady pass.

Do not attempt to steer a board freehand through a table saw blade. The blade wants a controlled feed path. Give it one. Your project will be cleaner, and your future self will thank you with all ten fingers.

Simple Method 6: Cut Steep Angles Using Complementary Angles

Most table saws tilt only to about 45 degrees. But what if you need a 50-degree or 60-degree bevel? In many cases, you can use a complementary angle. For example, if you need a 50-degree angle relative to the face, you may be able to set the blade to 40 degrees from vertical, depending on how the angle is measured.

This is where a full-size drawing or sample layout helps. Draw the angle on paper or scrap plywood, place the workpiece orientation exactly as it will be cut, and verify whether the table saw scale is measuring from vertical or from the table. A little layout work saves a lot of “why does this look backwards?” energy.

For very steep or awkward angles, use a jig that holds the workpiece securely. Clamps are your friend. Gravity is not a clamp. Hope is not a clamp. Your left thumb is definitely not a clamp.

Simple Method 7: Make Repeatable Angles with Stop Blocks

When cutting multiple parts to the same angle and length, stop blocks improve consistency. On a miter sled or crosscut sled, clamp a stop block to the fence so each workpiece registers in the same location. This is ideal for frame parts, box sides, drawer components, and decorative trim.

If using a rip fence as a length reference with a miter gauge, place the stop block before the blade, not beside it. The board should touch the stop block, then move away from it before entering the blade. This prevents the cut piece from being trapped between the blade and fence.

Common Mistakes When Cutting Angles on a Table Saw

Trusting the Built-In Scale Without Testing

The angle scale on a table saw is a helpful starting point, not a courtroom witness under oath. Dust, vibration, manufacturing tolerances, and normal wear can make the pointer slightly inaccurate. Always test important angles on scrap wood before cutting final parts.

Using a Dull or Wrong Blade

A dull blade burns wood, wanders, tears fibers, and makes your saw work harder. For clean miters and bevels, use a sharp carbide-tipped blade with an appropriate tooth count. Fine crosscuts usually benefit from more teeth, while ripping thicker stock may require fewer teeth and deeper gullets.

Forgetting About Kerf

The blade removes material. That removed material is called the kerf. When cutting angled parts to final size, mark the waste side clearly and cut on the correct side of the line. On angled cuts, it is easy to flip the board and accidentally cut the wrong end. Ask any woodworker. We all have a tiny museum of “learning pieces.”

Pushing Too Fast

Rushing creates rough edges, burning, and less control. Feed the board steadily and let the blade cut. If the saw bogs down, the blade may be dull, the stock may be too thick, or the feed rate may be too aggressive.

Skipping Support for Long Boards

Long boards need support before, during, and after the cut. If a board tips off the back of the saw, it can lift, twist, pinch the blade, or ruin the cut. Use roller stands, an outfeed table, or a helper who understands not to pull the board.

How to Get More Accurate Angle Cuts

Accuracy begins before the saw turns on. Start with one straight reference edge. Mark the cut clearly. Set the angle with a reliable tool. Make a test cut. Check the result. Adjust. Then cut the final workpiece.

For picture frames and boxes, cut opposite pieces together whenever possible. This keeps matching parts identical in length. For miters, sneak up on the final fit with light trimming passes. Removing a whisper of wood is easier than putting back a shout.

For bevels, use a zero-clearance insert if possible. It supports the fibers near the cut and reduces tear-out. Keep the board flat against the table and tight to the fence or jig. If the workpiece rocks, fix that before cutting.

Examples of Common Table Saw Angle Cuts

Picture Frame: 45-Degree Miters

Use a dedicated miter sled or carefully adjusted miter gauge. Cut one end of each rail, then use a stop block to cut matching lengths. Test the frame dry before gluing. If the corners do not close, adjust the angle slightly and recut.

Octagon Shelf: 22.5-Degree Miters

An octagon has eight sides, so each joint usually needs a 22.5-degree miter. A miter gauge can work, but a sled with a stop block makes the cuts more repeatable. Cut test pieces and assemble them with tape before cutting final stock.

Chamfered Tabletop Edge: Long Bevel Cut

Tilt the blade to the desired bevel, set the fence, and run the tabletop edge along the fence with steady support. For large tops, consider whether the piece is too heavy or awkward for the table saw. Sometimes a router chamfer bit is safer and cleaner for very large panels.

Tapered Table Legs: Taper Jig

Mark the taper, secure the leg blank in a taper jig, and cut one face at a time. If all four legs need to match, use the same jig setting and stop locations for every cut. Label the top, bottom, inside, and outside faces before you begin. Future you will appreciate the handwriting.

Maintenance Checks Before Cutting Angles

A table saw that is not calibrated will make angle cutting harder than it needs to be. Check that the blade is parallel to the miter slots. Check that the fence is aligned properly. Confirm the blade reaches true 90 degrees and true 45 degrees. Clean pitch from the blade, remove sawdust from the trunnion area, and make sure the throat plate sits flush with the table.

If the saw has positive stops at 90 and 45 degrees, verify them occasionally. These stops are convenient, but they can drift. A digital angle gauge, machinist square, or reliable combination square can quickly confirm whether the blade is where the scale says it is.

Experience Section: Real-Shop Lessons for Cutting Angles on a Table Saw

The first real lesson of cutting angles on a table saw is that the wood does not care how confident you felt while setting the gauge. It only cares about geometry. A miter that is half a degree off may look harmless on one board, but when four sides of a frame come together, that tiny error becomes a visible gap. This is why experienced woodworkers make test cuts. Not because they are unsure of themselves, but because they are sure wood will expose laziness immediately.

One practical habit is to keep a small pile of scrap near the saw. When setting up a 45-degree miter, cut two scrap pieces and bring them together like a corner. Better yet, cut four pieces and make a quick frame. A two-piece test shows whether the angle is close; a four-piece test shows whether the full assembly will behave. This takes a few minutes and can save expensive walnut, maple, oak, or that one beautiful board you bought while telling yourself, “I deserve this.”

Another experience-based tip is to avoid changing too many variables at once. If a miter joint has a gap, do not immediately adjust the blade, the miter gauge, the fence, the stop block, and your emotional outlook. Change one thing, test again, and observe the result. Woodworking accuracy is often a calm conversation with the tool. If you start yelling in five directions, the saw will not apologize.

For bevel cuts, support matters more than many beginners expect. A long board with one edge riding against the fence can feel stable at the start, then become awkward as more of it passes beyond the blade. This is where outfeed support turns a stressful cut into a smooth one. A simple outfeed table or roller stand helps the board continue forward without dropping. The cut becomes cleaner because the board stays flat and controlled.

Small parts deserve special caution. When making tiny miters for boxes, frames, or decorative pieces, it is tempting to hold the wood by hand because the cut takes only a second. That is exactly when mistakes happen. A miter sled with clamps, a carrier board, or a stop block is much safer. If your fingers feel close to the blade, they are close to the blade. The saw is not impressed by bravery.

There is also a big difference between “mathematically correct” and “project correct.” Sometimes walls are not square, frames are slightly flexible, and real boards have tiny bends. For trim work or fitted pieces, sneak up on the angle. Cut slightly long, test the fit, trim again, and stop when the joint closes. A perfect number on a gauge is nice, but a tight joint in the actual project is better.

Finally, label your pieces. Angled parts can become confusing fast, especially when left and right cuts mirror each other. Mark the face side, the waste side, and the direction of the angle. Use painter’s tape if pencil marks are hard to see. Many “bad cuts” are not caused by poor technique at all; they happen because the board was flipped the wrong way. The table saw did exactly what it was asked to do. The problem was that nobody told the board the plan.

Conclusion: Simple Angles Come From Smart Setups

Cutting angles on a table saw becomes much simpler when you choose the right method for the job. Use a miter gauge for basic angled crosscuts, a crosscut sled for better support, a dedicated miter sled for repeatable frame joints, a tilted blade for bevels, and a taper jig for angled rip cuts. The technique changes, but the priorities stay the same: secure the workpiece, guide it predictably, test the setup, and keep your hands away from danger.

The best woodworkers are not the ones who rush through angled cuts. They are the ones who slow down just long enough to set the saw accurately, check the first result, and make calm adjustments. Do that, and your table saw can produce clean miters, crisp bevels, elegant tapers, and compound angles that look far more complicated than they actually are. Geometry may still wear a tiny bow tie and act superior, but now you know how to make it work for you.
