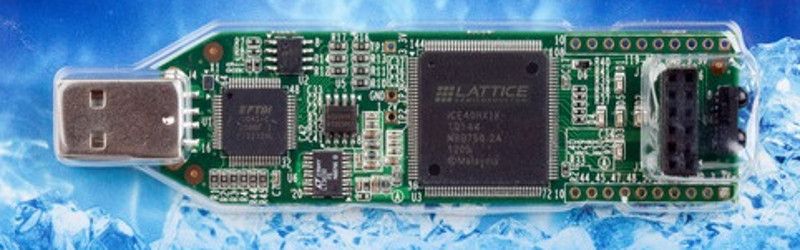

Taking The Pulse (Width Modulation) Of An FPGA

Pulse Width Modulation sounds like something a cardiologist might discover after accidentally walking into a digital logic lab. In reality, PWM is one of the most useful tricks an FPGA can perform: it turns a simple stream of ones and zeros into smooth-looking control over brightness, speed, power, tone, and even approximate analog behavior. The FPGA does not gently “fade” an LED in the analog sense. It switches it on and off very quickly, like a tiny silicon nightclub bouncer deciding who gets in and for how long.

That is the magic behind Taking The Pulse (Width Modulation) Of An FPGA. A field-programmable gate array is built for parallel digital logic, and PWM is digital logic at its most practical. You count clock ticks, compare that count to a duty-cycle value, and drive an output high or low. The result can dim LEDs, control motors, generate audio-like waveforms through filtering, drive servos, or feed power electronics with precise timing. It is simple enough for a beginner’s first FPGA project and important enough to show up in real embedded systems.

This article explains how PWM works inside an FPGA, why counters and comparators are the stars of the show, how duty cycle and frequency interact, what can go wrong, and how to build cleaner, more reliable PWM designs in Verilog, VHDL, or SystemVerilog.

What Pulse Width Modulation Really Means

Pulse Width Modulation, or PWM, is a method of encoding an average value by changing how long a digital signal stays high during a repeating period. The signal has two states: on and off. The “width” is the amount of time the pulse remains on. The “modulation” is the act of changing that width.

The key term is duty cycle. A 0% duty cycle means the signal is always off. A 50% duty cycle means it is on half the time and off half the time. A 100% duty cycle means it is always on. For LEDs, a higher duty cycle usually appears brighter. For motors, it often means more average power. For a filtered signal, it can represent a higher average voltage.

Imagine flipping a light switch 500 times per second. If the light is on for only 10% of each cycle, it looks dim. If it is on for 90%, it looks bright. Your eyes cannot keep up with the switching, so your brain politely averages the chaos and calls it brightness. Very generous of the brain.

Why FPGAs Are So Good At PWM

An FPGA is not a microcontroller with a few timer peripherals glued to the side. It is a fabric of configurable logic blocks, flip-flops, routing resources, memory, clock networks, and I/O pins. That means you can create one PWM channel, ten PWM channels, or a small orchestra of synchronized PWM generators if the device has enough resources.

In a microcontroller, PWM is usually tied to hardware timers. That is convenient, but fixed. In an FPGA, the PWM architecture is yours to design. You can create custom resolution, unusual frequencies, phase-shifted outputs, complementary drive signals, dead-time insertion, gamma-corrected LED dimming, servo pulses, or multi-channel motor-control timing. The FPGA does not complain. It simply becomes the circuit you describe, assuming your HDL is sensible and your timing constraints are not written like a ransom note.

The Basic FPGA PWM Circuit

The classic FPGA PWM block has three core parts:

1. A Counter

The counter increments on every clock cycle. When it reaches its maximum value, it wraps around to zero. This creates the repeating PWM period. An 8-bit counter counts from 0 to 255, giving 256 steps. A 12-bit counter gives 4096 steps. More bits mean finer duty-cycle resolution, but also a lower PWM frequency if the clock stays the same.

2. A Duty-Cycle Register

The duty-cycle register stores the desired output level. If the counter is 8 bits, the duty value may also be 8 bits. A value of 64 gives about 25% duty cycle, 128 gives about 50%, and 255 is almost fully on, depending on how the comparison is written.

3. A Comparator

The comparator checks the counter against the duty-cycle register. A typical design says: if the counter is less than the duty value, output high; otherwise, output low. That one line of logic is the tiny heartbeat of PWM.

That is the beginner-friendly version. Real designs may register the duty input, handle reset, avoid glitches, support 0% and 100% cleanly, and update duty only at the beginning of a PWM period. But the concept remains the same: count, compare, switch.

Frequency Versus Resolution: The Eternal Tug-of-War

FPGA PWM design has one tradeoff that appears almost immediately: frequency versus resolution. The PWM frequency depends on the FPGA clock and the number of counter steps.

For example, if an FPGA clock runs at 12 MHz and the PWM counter has 8 bits, the PWM frequency is approximately:

That is fast enough for LED dimming and many control tasks. If you use a 16-bit counter, the frequency becomes:

Now you have beautiful resolution, but a much lower switching frequency. For LEDs, 183 Hz may be acceptable in some cases, but visible flicker, camera banding, or motion artifacts can become annoying. For motor control or power conversion, the target frequency depends heavily on the hardware, load, switching devices, and thermal design.

The design question is not “What is the biggest counter I can use?” The better question is, “How much resolution do I need at a frequency that the system can tolerate?” FPGA design is full of these adult conversations with yourself.

Taking The Pulse Of An LED

LED dimming is the classic first FPGA PWM project because it is visual, satisfying, and less likely to launch anything across the room than a motor-control experiment. Connect an LED through the proper resistor or driver circuit, generate a PWM signal, and vary the duty cycle. The LED appears to fade.

On many FPGA boards, the onboard LEDs are active-high or active-low depending on the board design. This matters. If your LED gets brighter when you think it should get dimmer, the FPGA is not haunted. You may simply need to invert the output.

A common LED PWM project uses an 8-bit duty cycle. The counter runs from 0 to 255. If the duty value is 5, the LED is barely on. If it is 128, the LED is on about half the time. If it is 250, it is nearly full brightness. But human brightness perception is not perfectly linear. A jump from 5 to 20 may look more dramatic than a jump from 200 to 215. That is why advanced LED dimming often uses gamma correction, where the duty values are mapped through a curve to make brightness changes look smoother.

Verilog Example: A Clean Basic PWM Module

Here is a simple, practical Verilog-style PWM module. It keeps the idea readable while avoiding unnecessary wizard smoke.

This module creates a PWM output whose duty cycle is controlled by the duty input. If duty is zero, the output stays low. If duty is halfway through the range, the output is high for about half the period. For many LED and test projects, this is enough to get started.

The Off-By-One Goblin

PWM has a small trap that loves beginners and occasionally bites experienced engineers before coffee: the off-by-one error. With an 8-bit counter, there are 256 possible counts. But depending on whether you compare with <, <=, >, or >=, you may get one extra or one missing tick of output.

That may not matter for a casual LED fade. It can matter a lot in precision control, audio PWM, motor drives, or power electronics. Always simulate the boundary cases: 0%, 1 least-significant bit, 50%, maximum minus one, and full-scale. The boring test cases are where the interesting bugs hide.

Updating Duty Cycle Without Glitches

If the duty-cycle input changes in the middle of a PWM period, the output can produce a short unexpected pulse. For LEDs, this may be invisible. For power stages, it can be rude. A safer pattern is to store the requested duty cycle in one register and copy it into the active duty register only when the counter wraps back to zero.

This makes duty-cycle changes happen cleanly at the start of a new PWM frame. It is a small change that makes the design feel much more professional.

FPGA PWM For Motors

PWM is widely used for controlling DC motors because the motor responds to average power rather than every individual switching edge. An FPGA can generate the PWM timing, while external drivers or MOSFET stages handle the actual current. This distinction matters: an FPGA pin is a logic signal, not a magic power hose.

For motor applications, designers must consider switching frequency, driver requirements, current limits, thermal behavior, back electromotive force, braking modes, and electromagnetic interference. The FPGA creates accurate timing, but the surrounding electronics decide whether the system runs smoothly or smells like burnt ambition.

Complementary PWM And Dead Time

In half-bridge and full-bridge power circuits, PWM often uses complementary outputs: when one transistor is on, the other is off. But real transistors do not switch instantly. If both devices are on at the same time, even briefly, the supply can short through the bridge. That event is called shoot-through, which is a polite engineering term for “please do not do that.”

Dead time solves this problem by inserting a small delay between turning one device off and turning the other on. FPGAs are excellent for this because the dead-time logic can be described directly in HDL and adjusted in clock cycles. A motor-control PWM block may include duty control, complementary outputs, dead-time insertion, fault shutdown, and synchronization with ADC sampling.

PWM As A Poor Person’s DAC

PWM can also approximate an analog output. If a PWM signal passes through a low-pass filter, the filter smooths the rapid switching into an average voltage. This is sometimes called a PWM DAC. It will not replace a high-quality digital-to-analog converter in demanding applications, but it is useful for audio experiments, bias control, simple waveforms, LED current references, and educational projects.

The filter design matters. A low PWM frequency makes ripple harder to remove. A higher PWM frequency is easier to filter but may reduce available resolution unless the FPGA clock is fast. As usual, engineering gives you three knobs and lets you pick which two you like.

Why Some FPGA Families Include PWM IP

Some FPGA families include specialized hardware blocks or vendor IP for PWM-related tasks. For example, LED driver blocks may include brightness registers, blink control, breathing effects, selectable flicker rates, and multiple channels. These blocks save logic resources and simplify common designs.

Using built-in IP can be smart when the feature matches your need. But writing your own PWM in HDL is still valuable. It teaches timing, counters, registers, clock domains, simulation, constraints, and hardware thinking. Also, custom HDL gives you control when the vendor IP is too large, too limited, or documented with the emotional warmth of a tax form.

Simulation: The Oscilloscope Before The Oscilloscope

Before loading a PWM design onto an FPGA board, simulate it. A simple testbench can verify frequency, duty cycle, reset behavior, and boundary conditions. You do not need a heroic verification environment to catch many bugs. You need a clock, a reset, a few duty-cycle values, and enough waveform inspection to confirm the design does what you think it does.

Simulation helps answer questions like: Does 0 produce always-off? Does maximum produce full-on or almost-full-on? Does the duty update happen mid-cycle or at wraparound? Does reset produce a known state? Is the PWM polarity correct?

After simulation, a logic analyzer or oscilloscope can confirm the output on hardware. Measuring a PWM signal is straightforward: check the period, high time, duty cycle, rise/fall behavior, and whether the signal has unexpected jitter or glitches.

Clocking And Timing Considerations

FPGA PWM logic should generally run from a clean clock and use synchronous design practices. Avoid creating new clocks by toggling logic signals unless you know exactly what you are doing. Use clock enables instead. This keeps the design friendly to the FPGA timing tools and reduces mysterious behavior.

For example, if you want a slower PWM update or a fade step every few milliseconds, do not create a new “slow clock” in random fabric. Create a counter that generates a one-cycle enable pulse. The main logic still runs on the main FPGA clock, but certain actions occur only when the enable is active.

Multi-Channel PWM

One advantage of FPGA PWM is easy scaling. A single counter can feed many comparators. If all channels share the same frequency, each channel only needs its own duty register and comparator. This is efficient for LED arrays, RGB control, multiple servos, or synchronized outputs.

However, turning many outputs on at exactly the same time can increase simultaneous switching noise. One solution is phase shifting, where channels start their PWM periods at different offsets. Another is using spread-spectrum or pseudo-random PWM techniques in special cases. The basic goal is to reduce large current spikes and make the system behave more politely.

Common FPGA PWM Mistakes

Forgetting Output Polarity

Some boards wire LEDs active-low. If the LED appears inverted, check the schematic before blaming physics.

Choosing The Wrong Frequency

Too low can create visible flicker or audible whine. Too high can reduce resolution or stress power electronics. Pick the frequency based on the load.

Ignoring Boundary Values

Always test duty values at zero, half scale, and full scale. Boundary bugs are tiny gremlins with excellent hiding skills.

Driving Loads Directly From FPGA Pins

FPGA I/O pins are not motor drivers. Use proper driver circuits, resistors, MOSFETs, buffers, and protection components.

Skipping Simulation

Uploading untested HDL and hoping for the best is not engineering. It is a raffle with electricity.

Specific Example: Breathing LED On An FPGA

A breathing LED is a great PWM demonstration because it combines a PWM generator with a slowly changing duty cycle. The PWM runs fast enough to avoid flicker, while a second counter slowly increases and decreases the duty value. The result is an LED that fades in and out like it is calmly sleeping, which is more than can be said for many developers debugging pin constraints at 2 a.m.

The design can be divided into two modules. The first module generates PWM. The second module generates the brightness value. The brightness module increments duty until it reaches maximum, then decrements until it reaches minimum. This pattern repeats forever.

This modular style is healthy FPGA practice. A PWM generator should not need to know whether the duty value comes from a button, UART command, CPU register, lookup table, rotary encoder, or dramatic artistic impulse. Keep the PWM block reusable and let other logic decide the duty cycle.

How PWM Fits Into Real FPGA Projects

In real systems, PWM is rarely alone. It may be part of a motor controller, LED matrix driver, robotics project, power converter, audio experiment, fan controller, or sensor excitation circuit. The FPGA may receive commands from a soft processor, SPI interface, I2C controller, UART link, memory-mapped bus, or external switches.

This is where FPGA PWM becomes more than a beginner exercise. You can build registers for duty cycle, status flags, fault detection, synchronized updates, and interrupt signals. You can run several PWM domains at once. You can connect the PWM to a control loop. You can timestamp events, align ADC sampling, and implement safety shutdown logic. The humble counter-comparator design grows into a serious subsystem.

SEO-Friendly Summary For Makers And Engineers

Taking the pulse width modulation of an FPGA means understanding how digital hardware creates controlled average behavior from fast switching. The core circuit is simple: a counter defines the period, a register stores the duty cycle, and a comparator generates the output. The design decisions are where the fun begins: frequency, resolution, update timing, polarity, filtering, dead time, synchronization, and load requirements.

For beginners, PWM is one of the best ways to learn FPGA design because it produces visible results quickly. For advanced users, it remains useful because the same idea scales into motor drives, LED engines, power electronics, waveform generation, and mixed-signal control. In other words, PWM is not just a blinking LED trick. It is a digital Swiss Army knife, minus the tiny scissors that never cut anything properly.

Experiences Related To Taking The Pulse (Width Modulation) Of An FPGA

The first memorable experience most people have with FPGA PWM is the moment an LED finally fades instead of merely blinking. Blinking is nice, but fading feels different. It feels like the FPGA has stopped shouting “ON! OFF! ON! OFF!” and started speaking in shades. Technically, nothing analog has happened. Emotionally, it feels like the board has learned manners.

One practical lesson from building PWM on an FPGA is that the simplest design is often the best starting point. A free-running counter and a comparator can teach more than a giant vendor-generated block when you are learning. You can see every register. You can simulate every edge. You can change the counter width and immediately understand the effect on frequency. That direct connection between code and hardware is the reason FPGA development is addictive to some people and mildly terrifying to others.

Another common experience is discovering that hardware does exactly what you wrote, not what you meant. A duty value of 255 on an 8-bit PWM might not produce a perfect 100% output if the comparator logic only stays high while the counter is less than the duty value. That may produce 255 high counts out of 256, which is close, but not constant on. For an LED, nobody may care. For validation testing or power control, that single count can matter. This is when the phrase “close enough” quietly leaves the room.

Testing PWM on real hardware also teaches respect for measurement tools. A multimeter may show an average voltage, but it will not reveal pulse shape, frequency, jitter, or glitches. A logic analyzer can show digital timing clearly. An oscilloscope can show edges, ringing, overshoot, and analog behavior. Seeing the waveform directly helps connect HDL with physical reality. The waveform is the FPGA telling the truth in square waves.

Buttons and switches add another lesson: humans are electrically messy. A push button does not change state once. It bounces. If you use raw button input to adjust duty cycle, your LED may jump around like it had too much coffee. Debouncing inputs, synchronizing external signals, and registering control values are all part of making a PWM project feel solid.

Scaling from one PWM output to many is also educational. At first, creating multiple channels feels as easy as copying a comparator. Then you notice simultaneous switching, routing, current draw, pin limitations, and timing constraints. A row of LEDs turning on together may be harmless. A bank of power transistors switching together deserves more respect. This is where phase offsets, proper drivers, and careful board design enter the story.

Perhaps the most useful experience is learning to separate the PWM generator from the policy that controls it. The PWM module should generate clean pulses. Another block can decide brightness curves, servo positions, motor speed commands, breathing effects, or communication updates. This separation makes the design reusable. Today it dims an LED. Tomorrow it controls a fan. Next week it becomes part of a robot that definitely was “just a weekend project” three months ago.

In the end, taking the pulse width modulation of an FPGA is really about learning how digital timing shapes the physical world. A counter becomes brightness. A comparator becomes motion. A register becomes power. That is the charm of FPGA work: the line between code and circuit is wonderfully thin.

Conclusion

Pulse Width Modulation is one of the clearest demonstrations of what makes an FPGA powerful. With a few registers and simple logic, an FPGA can create precise, repeatable timing for LEDs, motors, servos, filters, and custom control systems. The beginner version is easy: count, compare, output. The professional version adds glitch-free updates, dead time, phase management, synchronization, testing, and careful hardware integration.

If you are learning FPGA design, PWM is a perfect project because it gives immediate feedback and teaches essential skills. If you are building real products, PWM remains valuable because it is efficient, flexible, and deeply compatible with digital hardware. The FPGA may only speak in zeros and ones, but with PWM, it can whisper, fade, spin, pulse, and control the world one clock tick at a time.
