Why You Shouldn’t Quite Forget The Moving Coil Multimeter

In the great toolbox popularity contest, the digital multimeter has been walking around with sunglasses on for decades. It has a crisp display, auto-ranging, beeps, buttons, backlights, min/max memory, and enough tiny symbols to make the front panel look like a dashboard from a small spaceship. Meanwhile, the moving coil multimeter sits in the drawer with a needle, a scale, and the quiet dignity of a retired engineer who still knows where all the good test points are.

But here is the thing: the old analog multimeter is not just nostalgia in a rubber case. A moving coil multimeter, also called an analog multimeter or VOM, can still be useful for electronics repair, circuit troubleshooting, audio work, battery checks, sensor testing, and any job where you want to watch a value move instead of staring at digits that jitter like they drank too much coffee.

This does not mean you should throw your digital multimeter into the sea. Please do not do that; the fish already have enough problems. Modern digital meters are safer, more accurate, easier to read, and better suited for many electrical measurements. But if you care about practical diagnostics, learning how circuits behave, and seeing changes in real time, the moving coil multimeter still deserves a spot on the bench.

What Is a Moving Coil Multimeter?

A moving coil multimeter is an analog measuring instrument that uses a mechanical meter movement to show voltage, current, or resistance. Instead of displaying a number on an LCD, it moves a pointer across a printed scale. That pointer is usually driven by a permanent magnet moving coil movement, often shortened to PMMC.

Inside the meter, a small coil sits in a magnetic field. When current flows through the coil, it produces torque. That torque moves the pointer. A spring pushes back, and the final needle position corresponds to the amount of current flowing through the movement. With carefully chosen resistors, switches, rectifiers, and internal circuits, that basic movement can be used to measure DC voltage, AC voltage, current, and resistance.

That sounds simple, and in a way it is. But simple does not mean primitive. A good analog multimeter is an elegant piece of engineering. It translates an electrical quantity into physical motion instantly enough for the human eye to interpret trends, swings, peaks, dips, and slow changes. Digital meters are excellent at telling you a value. Analog meters are excellent at showing you behavior.

Why Digital Multimeters Took Over

The digital multimeter won for many good reasons. It is usually more accurate than an old analog meter, especially for DC voltage and resistance. It is easier to read without worrying about parallax error, where your viewing angle makes the pointer appear to land on the wrong mark. It often has a high input impedance, commonly in the megohm range, which means it draws very little current from the circuit being measured.

Modern digital multimeters also include features that a classic moving coil meter could only dream of while sitting beside the soldering iron. Auto-ranging saves time. Continuity beepers speed up cable and fuse checks. True RMS measurement improves AC readings on non-sinusoidal waveforms. Min/max recording helps catch changes. Some meters log data, connect wirelessly, measure temperature, test diodes, count frequency, and display bar graphs.

Safety is another major reason digital meters dominate professional work. A quality modern meter should have appropriate CAT safety ratings, fused current ranges, proper input protection, and test leads rated for the environment. When working near household, commercial, or industrial power, a properly rated digital multimeter is the smart choice. A vintage analog meter from a garage sale may be charming, but charm is not a safety standard.

So Why Keep an Analog Multimeter?

Because some measurements are not really about the number. They are about motion. A moving coil multimeter gives you a visual sense of change. The needle rises, falls, trembles, kicks, settles, or drifts. That movement can tell you something before a digital readout has finished deciding which digit to blink next.

For example, imagine checking a capacitor in a simple circuit. On an analog resistance range, the needle may swing and then slowly return as the capacitor charges from the meter’s internal battery. That motion is not a perfect capacitance test, but it gives a quick clue that the capacitor is not completely open or shorted. A digital meter may simply flash changing numbers that are technically correct but less intuitive to watch.

Or consider tuning a circuit for maximum signal. With a moving coil meter, you can adjust a control and watch the needle climb toward a peak. Your eye naturally follows the trend. You do not need to mentally compare 2.87, 2.91, 2.89, 2.94, and 2.93 while trying not to sneeze on the trimmer capacitor. The needle tells the story in one smooth motion.

The Needle Is a Built-In Trend Indicator

One of the biggest advantages of a moving coil multimeter is the way it handles unstable readings. A digital meter samples the signal and updates the display. If the input is noisy or changing, the display can bounce around. Good meters offer smoothing, averaging, min/max modes, and bar graphs, but an analog meter naturally shows the trend.

A moving needle can reveal ripple, hunting, intermittent contact, and slow drift. If a power supply voltage is wobbling, the pointer may vibrate. If a potentiometer has a dirty track, the needle may jump or drop as you rotate the shaft. If a battery sags under load, the pointer falls in a way that is easy to see. If a sensor output changes gradually, the movement feels almost alive.

That is why analog meters remain popular among some radio technicians, audio repairers, appliance troubleshooters, automotive hobbyists, and electronics learners. The analog display gives feedback that feels closer to the circuit’s physical behavior. It is not just measuring; it is demonstrating.

Where Moving Coil Multimeters Still Shine

1. Peaking and Nulling Adjustments

When aligning a radio stage, adjusting an antenna circuit, balancing a bridge, or tuning for a maximum or minimum reading, an analog meter is wonderfully intuitive. The pointer rises and falls as you adjust. You can chase the peak without staring at a flickering number. It feels like tuning a guitar by ear, except the guitar is a circuit and the string is probably a small coil that looks more important than it wants to admit.

2. Watching Capacitors Charge and Discharge

An analog ohms range can show the rough charging behavior of capacitors. The pointer kick gives a quick visual sign that something is happening. This does not replace a capacitance meter or an ESR tester, but it can help during quick troubleshooting, especially on older equipment where you are trying to decide whether a component is obviously dead.

3. Finding Intermittent Connections

Loose wires, oxidized switches, cracked solder joints, and worn potentiometers often misbehave in ways that last only a moment. A digital meter may miss the drama or average it away. An analog pointer may twitch, dip, or bounce, giving you a visual clue. In troubleshooting, one tiny twitch can be the circuit equivalent of a suspect saying, “Fine, yes, I was there.”

4. Teaching Electrical Basics

For beginners, a moving coil meter can make electricity feel less abstract. When current increases, the pointer moves more. When polarity is reversed on a DC range, the needle tries to move backward. When resistance changes, the pointer responds. The direct visual connection between electrical behavior and mechanical motion can make Ohm’s law feel less like a formula and more like something you can actually see.

5. Working With Older Service Manuals

Many vintage electronics manuals were written when analog VOMs were common. Some voltage readings in old service data assume the loading effect of a meter rated at a certain number of ohms per volt. A modern high-impedance digital meter may show a different value in high-resistance parts of the circuit. In those cases, using an analog meter, or at least understanding how it loads the circuit, can help you interpret old documentation correctly.

The Big Catch: Input Impedance and Circuit Loading

The biggest weakness of many analog multimeters is input impedance. Digital multimeters often have high input impedance, which reduces loading on the circuit under test. Analog meters are commonly specified in ohms per volt. A classic meter might be 20,000 ohms per volt on DC voltage ranges. That means its input resistance depends on the selected voltage range.

For example, on a 10-volt range, a 20,000-ohms-per-volt meter presents about 200,000 ohms of resistance. On a 100-volt range, it presents about 2 megohms. That can be perfectly fine in some circuits and very intrusive in others. If you measure a high-impedance transistor bias network, tube circuit, sensor output, or delicate signal node, the analog meter may pull the voltage down and give a misleading reading.

This is not a defect; it is a characteristic. The meter becomes part of the circuit. Sometimes that is bad. Occasionally, it is useful, because a lower-impedance meter can bleed off ghost voltages or induced charges that fool high-impedance digital meters. The key is knowing what the tool is doing. A screwdriver can open a paint can, but that does not mean it is a paint-can meter.

Analog Versus Digital: The Honest Comparison

A digital multimeter is usually the right first meter for most people. It is safer when properly rated, easier to read, more accurate, and more versatile. For electronics repair, a decent DMM with high input impedance, diode test, continuity, capacitance, and min/max is hard to beat. For household electrical work, only a properly rated meter should be used, and inexperienced users should avoid live mains testing entirely.

A moving coil multimeter is best viewed as a complementary tool. It is not a replacement for a good DMM. It is the second opinion with eyebrows. Use it when you want to see movement, trends, instability, charging action, or relative change. Use the digital meter when you need accuracy, safety features, high input impedance, or precise readings.

In many workshops, the best answer is not analog or digital. It is both. Keep the digital meter for accurate measurement and safety-critical work. Keep the analog meter for dynamic observation, quick comparisons, and old-school troubleshooting moments where the needle says more than a number.

How to Choose a Moving Coil Multimeter Today

If you decide to add an analog multimeter to your bench, do not buy only with your heart. Yes, the vintage meter with the yellowed scale and heroic carrying case looks like it has solved crimes in three states. Still, check the basics.

Look for a clear scale, smooth pointer movement, working zero adjustment, intact case, clean range switch, and test leads in excellent condition. Check whether the resistance ranges work, because ohms measurement usually depends on an internal battery. Make sure the movement is not sticky. A pointer that hangs, scrapes, or refuses to return to zero is not charming; it is a tiny mechanical protest.

For serious use, consider whether the meter has proper overload protection and whether its voltage and current ranges match your projects. For electronics bench work at low voltages, many analog meters are still useful. For high-energy electrical systems, choose a modern, properly CAT-rated instrument instead. Vintage meters belong around low-energy projects unless they are specifically rated and maintained for more demanding work.

Common Mistakes to Avoid

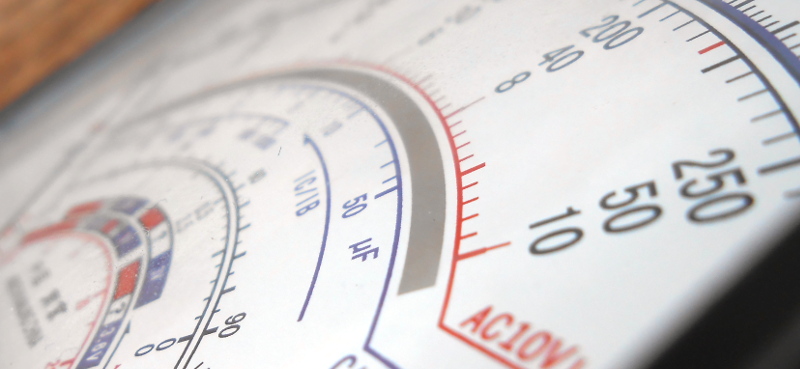

The first mistake is reading the wrong scale. Analog multimeters often have several printed scales stacked together like a tiny electrical lasagna. Before trusting the reading, confirm the selected range and the correct scale. The second mistake is forgetting polarity on DC measurements. If the leads are reversed, the pointer may try to swing below zero, which is bad for the meter movement.

The third mistake is using resistance mode on a powered circuit. Do not do that. Resistance ranges use the meter’s internal battery, and applying external voltage can damage the meter. The fourth mistake is measuring current incorrectly. Current measurement requires the meter to be placed in series with the circuit, and current ranges may be unfused or limited. When in doubt, stop and use a safer method or a properly rated clamp meter.

The fifth mistake is assuming old equals rugged. Some analog meters are tough, but the movement is still mechanical. Drops, overloads, vibration, and abuse can bend the pointer or damage the coil. Treat the instrument like a precision tool, not a hammer that went to engineering school.

Specific Examples: When the Needle Wins

Suppose you are cleaning an old volume potentiometer in an audio amplifier. A digital meter can measure resistance, but as you rotate the shaft, the numbers may jump too quickly to interpret. An analog meter lets you watch the sweep. If the pointer moves smoothly, the track is probably healthy. If it jumps, drops out, or scratches across the scale, the pot may be dirty or worn.

Suppose you are checking a small solar panel under changing light. A digital meter gives accurate voltage readings, but an analog pointer shows passing clouds, hand shadows, and angle changes instantly. The same is true for a small generator, a sensor output, or a thermistor warming under your fingers. The needle turns measurement into observation.

Suppose you are restoring a vintage radio and a service manual expects readings from an analog VOM. A modern digital meter may report higher voltages in high-impedance sections because it loads the circuit less. Understanding the analog meter’s loading effect can help explain why your measured values do not match the old chart. In vintage repair, sometimes the old tool speaks the same dialect as the old circuit.

Why the Moving Coil Multimeter Still Matters

The moving coil multimeter matters because it teaches humility. Not every useful measurement is the most precise one. Sometimes the best diagnostic clue is not 4.982 volts. Sometimes it is, “The needle dips whenever I tap the connector.” That observation can lead you straight to a loose joint, tired switch, failing battery, or noisy control.

It also matters because it reminds us that instruments influence measurements. An analog meter’s lower input resistance can load a circuit. A digital meter’s high input impedance can reveal voltages that are real but not capable of delivering useful current. Neither tool is magical. Each has a personality, and good troubleshooting means knowing when that personality is helping or lying.

Finally, the analog meter matters because it makes electronics more readable. It gives motion to invisible forces. It turns voltage, current, and resistance into a physical gesture. For learners, hobbyists, and repair-minded people, that can be the difference between memorizing electrical theory and actually feeling how circuits behave.

Experience Notes: Living With a Moving Coil Multimeter on the Bench

The first experience most people have with a moving coil multimeter is mild confusion followed by unexpected affection. At first, the scale looks crowded. There are numbers going one direction, numbers going another direction, resistance marks that are not evenly spaced, and a mirror strip that seems to whisper, “Yes, your viewing angle matters.” But after a few sessions, the meter starts to feel natural. You choose a range, touch the probes, and the needle responds like a little mechanical narrator.

One practical lesson comes from checking batteries. A digital meter might say a battery is 1.52 volts with no load, which sounds healthy. An analog meter, depending on the range and circuit, may load it more and show a weaker response. That is not always a laboratory-grade battery test, but it can be revealing. Many real-world failures happen because a source looks fine until it has to supply current. The needle gives you a more physical sense of sag, especially when testing small cells, older battery packs, or simple DC supplies.

Another memorable use is troubleshooting mechanical controls. Rotate a switch, wiggle a cable, flex a connector, or turn a potentiometer while watching the pointer. The analog meter often makes intermittent faults easier to spot because the eye catches movement naturally. A digital display may update too slowly or too neatly. The needle, however, tattles. It flickers when contacts scrape, drops when a wire opens, and swings when a connection returns. In a workshop, that kind of visual clue can save time and prevent unnecessary parts replacement.

A moving coil meter also changes how you think about adjustment. When peaking a signal, balancing a circuit, or setting a rough bias point, the needle encourages slow, deliberate movement. You do not chase digits. You watch direction. If the pointer rises, keep going. If it falls, back up. This makes analog meters surprisingly pleasant for tuning tasks. It feels less like reading a calculator and more like steering a boat toward the deepest part of a channel.

The experience is not always romantic, of course. Analog meters can be fussy. You must zero the pointer, choose the proper range, read the correct scale, and avoid overloading the movement. Resistance ranges need a battery. Accuracy depends on scale interpretation and meter condition. If the meter is old, dirty switches or tired components can cause errors. This is why the analog multimeter works best as a companion, not a lone hero. Let the digital meter handle precision and safety-critical checks. Let the moving coil meter show movement, trend, and behavior. Together, they make a bench feel complete.

Conclusion

You should not quite forget the moving coil multimeter because it still offers something modern tools sometimes hide: a direct, visual sense of electrical change. The analog pointer is not as precise as a good digital display, and it is not the best tool for every job. It can load circuits, it can be misread, and old meters may lack modern safety protection. But when you need to watch a signal rise, fall, drift, twitch, peak, or collapse, that little needle can be wonderfully useful.

The smartest bench is not trapped in a fake rivalry between analog and digital. A quality digital multimeter is essential. A moving coil multimeter is optional, but valuable. Keep one nearby for low-energy electronics work, vintage troubleshooting, learning, and those moments when numbers are not enough. The digital meter tells you what the value is. The moving coil meter shows you what the circuit is doing. That is why this old tool still earns its drawer space.
